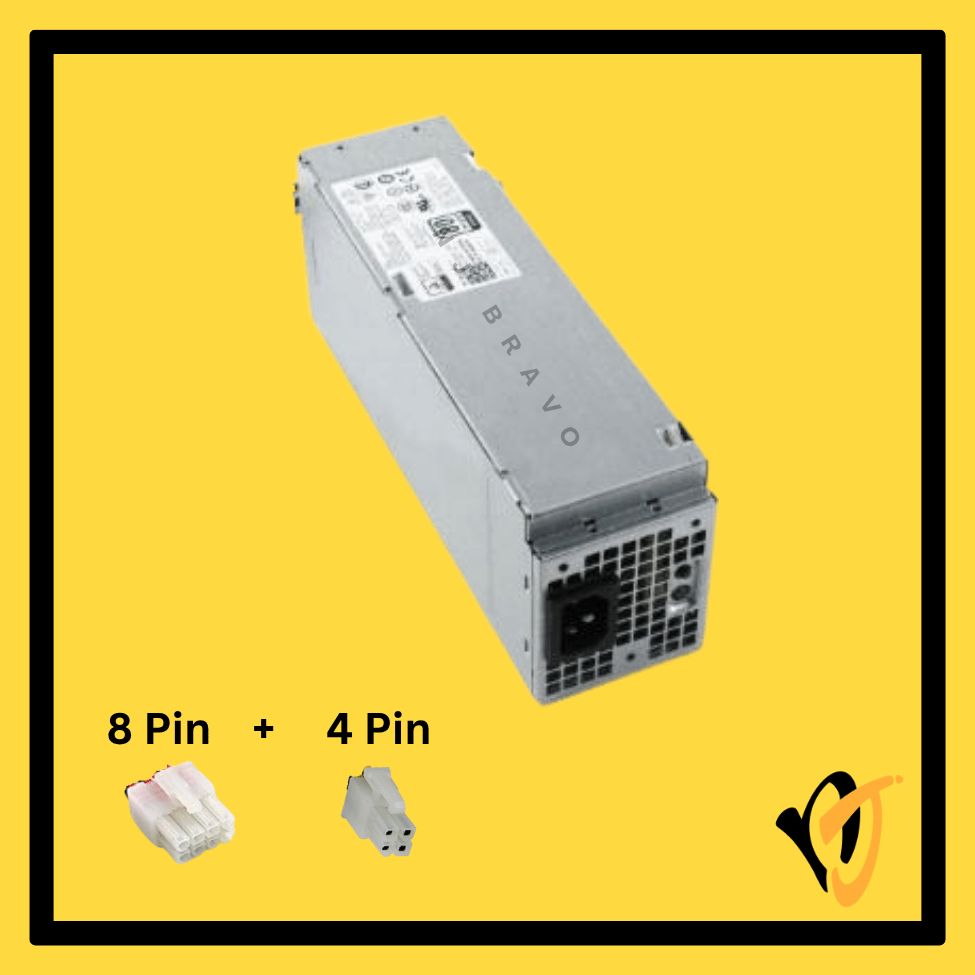

Dell 180W PSU 25KG6 GYC55 OptiPlex 3040 5040 7040 MT 4+8P

Dell 180W PSU 25KG6 GYC55 OptiPlex 3040 5040 7040 MT 4+8P

Genuine Dell 180W SFF PSU 25KG6/GYC55 for OptiPlex 3040/5040/7040 MT, Inspiron 3650 – 4+8 Pin

Add to quote
SKU: PSU-DL-01 Category: Brand:

Description

Dell 180W Power Supply 25KG6 / GYC55 | OptiPlex 3040 / 5040 / 7040 MT, Inspiron 3650 / 3656 (4 + 8 Pin)

Key Features

  • New original Dell 180W power supply for OptiPlex 3040 / 5040 / 7040 MT and Inspiron 3650 / 3656 desktop
  • Dell part numbers: 25KG6 / 025KG6 / CN-025KG6 / GYC55 / 0GYC55 – interchangeable within same platform
  • PSU model numbers: B180AS-00 / H180AS-02 / H180AS-03 / L180AS-01 / AC180AS-00
  • Dimensions: 220 x 82 x 62 mm – Dell SFF proprietary form factor
  • Connector layout: 4-Pin CPU + 8-Pin Motherboard (4+8P) – Dell proprietary connector
  • Stable 180W output for OptiPlex SFF desktop standard workloads
  • Built-in OVP / OCP / SCP protection
  • Non-standard Dell SFF connector – not interchangeable with standard ATX PSUs

Technical Specifications

Brand Dell
Condition New Original (Genuine Dell)
Dell PN 25KG6 / 025KG6 / GYC55 / 0GYC55
PSU Model B180AS-00 / H180AS-02 / H180AS-03 / L180AS-01 / AC180AS-00
Wattage 180W MAX
Input Voltage 100-240V AC, 50-60Hz, 3.0A
Output +12VA = 12A; +12VB = 14A; +12VSB = 2.5A; 180W MAX
Form Factor Dell SFF Proprietary (220 x 82 x 62 mm)
Connector Type 4-Pin + 8-Pin (4+8P)
Hot Plug No
Protection OVP / OCP / SCP

Compatible Models

Dell OptiPlex Series (MT/SFF):

  • Dell OptiPlex 3040 MT / SFF
  • Dell OptiPlex 5040 MT / SFF
  • Dell OptiPlex 7040 MT / SFF
  • Dell OptiPlex 9040 SFF

Dell Inspiron Series (MT):

  • Dell Inspiron 3250 MT / 3650 MT / 3655 MT / 3656 MT

Dell Precision:

  • Dell Precision 3420
!

Disclaimer

Always verify the part number / model number on your existing PSU label before purchasing.

If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.

Package Contents

  • 1x Dell 180W Power Supply 25KG6 / GYC55 (New Original)

Warranty

  • 90-day replacement warranty
  • Covers manufacturing defects; physical damage and improper installation not included

Additional Notes

  • Dell proprietary 4+8P connector – NOT compatible with standard ATX PSUs or non-Dell SFF chassis.
  • 180W variant can be upgraded to 240W (DHVJN / HU240AM-00) using the same connector family.
  • Always verify the Dell DP/N on your existing PSU label matches 25KG6 or GYC55 before ordering.
  • New original unit – genuine factory Dell unit, not refurbished or aftermarket.
