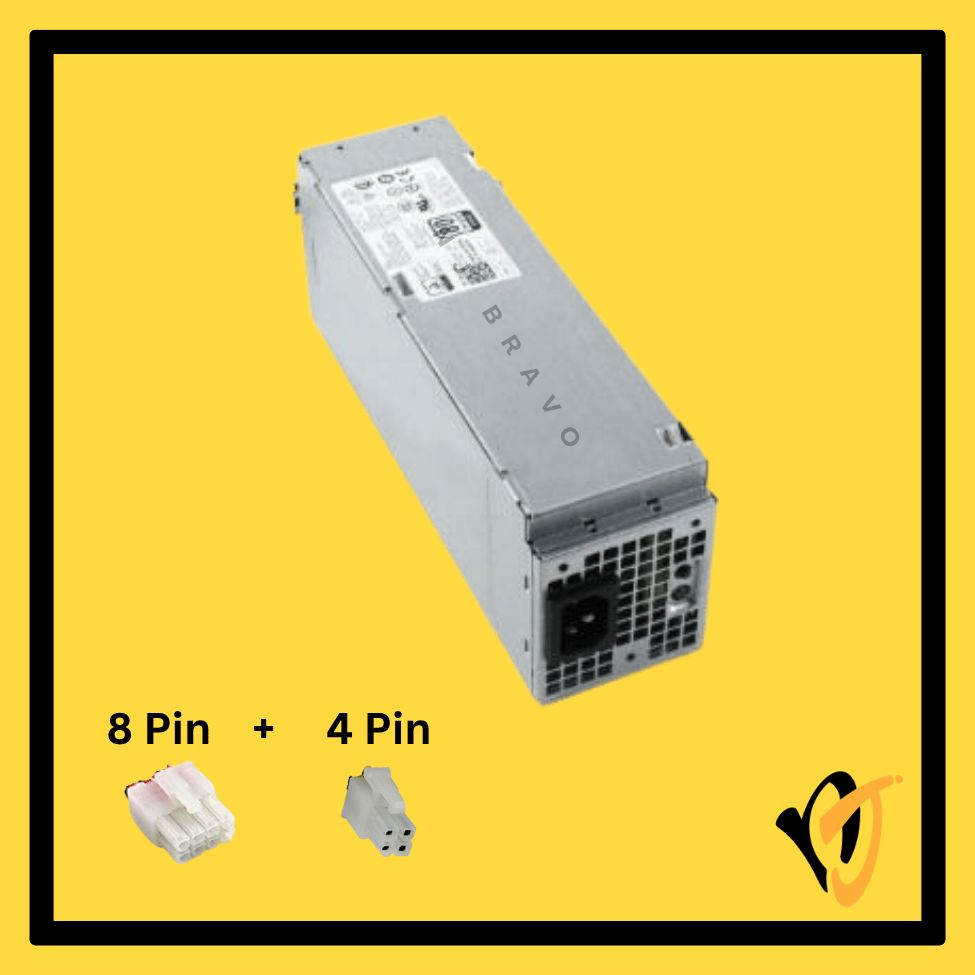

Dell 240W Power Supply VXKPH / 6WX7D | OptiPlex 3040 / 5040 / 7040 SFF, Inspiron 3650 / 3656 (4 + 8 Pin)
Key Features
- New original Dell 240W power supply – direct replacement for OptiPlex 3040/5040/7040 and Inspiron 3650/3656
- Dell part numbers: VXKPH / 6WX7D / THRJK / 04GTN5 / 2P1RD / H62JR
- PSU model numbers: HU240AM-00 / AC240EM-00 / L240NM-00 / B240NM-00
- Dimensions: 220 x 82 x 62 mm – Dell SFF proprietary form factor
- Connector layout: 4-Pin CPU + 8-Pin Motherboard (4+8P) – same as 180W variant; direct upgrade
- 240W provides 33% more power headroom over stock 180W for GPU or storage upgrades
- Built-in OVP / OCP / SCP protection
- Non-standard Dell SFF connector – designed exclusively for Dell SFF chassis
Technical Specifications
| Brand | Dell |
| Condition | New Original (Genuine Dell) |
| Dell PN | VXKPH / 6WX7D / THRJK / 04GTN5 / 2P1RD |
| PSU Model | HU240AM-00 / AC240EM-00 / L240NM-00 / B240NM-00 |
| Wattage | 240W MAX |
| Input Voltage | 100-240V AC, 50-60Hz, 4.0A |
| Output | 240W MAX continuous output |
| Form Factor | Dell SFF Proprietary (220 x 82 x 62 mm) |
| Connector Type | 4-Pin + 8-Pin (4+8P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Dell OptiPlex Series:
- Dell OptiPlex 3040 MT / SFF
- Dell OptiPlex 5040 MT / SFF
- Dell OptiPlex 7040 MT / SFF
Dell Inspiron Series:
- Dell Inspiron 3250 MT / 3650 MT / 3655 MT / 3656 MT
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Dell 240W Power Supply VXKPH / 6WX7D (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- 240W upgrade – same 4+8P connector as stock 180W (25KG6 / GYC55). Can replace 180W unit directly.
- Dell SFF proprietary connector – NOT compatible with standard ATX PSUs.
- Verify Dell DP/N on existing PSU label matches VXKPH or 6WX7D before ordering.
- New original unit – genuine factory Dell unit, not refurbished or aftermarket.
