Description
Dell 70K80 RAID Controller Battery for PERC H710 / H710P / H810
Key Features
- New Dell 70K80 replacement battery for PERC RAID controllers
- Made for PERC H710, H710P and H810 controller cards
- 3.7V, 1.8Wh / 500mAh rechargeable lithium-ion battery
- On power loss, keeps the controller cache memory powered so unwritten data is protected
- Replaces a failed or worn battery that causes battery errors or forces the controller into write-through mode
Technical Specifications
| Brand | Dell |
| Product Type | RAID controller battery (cache backup) |
| Part Number | 70K80 (also referenced as T40JJ) |
| Battery Type | Lithium-ion, rechargeable |
| Voltage | 3.7V |
| Capacity | 1.8Wh / 500mAh (as printed on the battery label) |
| For Controllers | PERC H710, H710P, H810 |
| Condition | New |
| Warranty | 3 Months |
Compatible Models
- PERC controllers: H710, H710P, H810
- Dell PowerEdge 12th-generation servers commonly fitted with these controllers: R320, R420, R520, R620, R720, R820, T420, M620 (please confirm your controller model with us before ordering)
- PERC H730 / H730P / H830: listed by some suppliers, please confirm with us before ordering
!
Disclaimer
- This battery is for PERC H710 / H710P / H810 series controllers. Older PERC 6 / H700 cards and newer 14th-gen PERC cards use different batteries. Please check the part number (70K80 or T40JJ) on your existing battery before ordering.

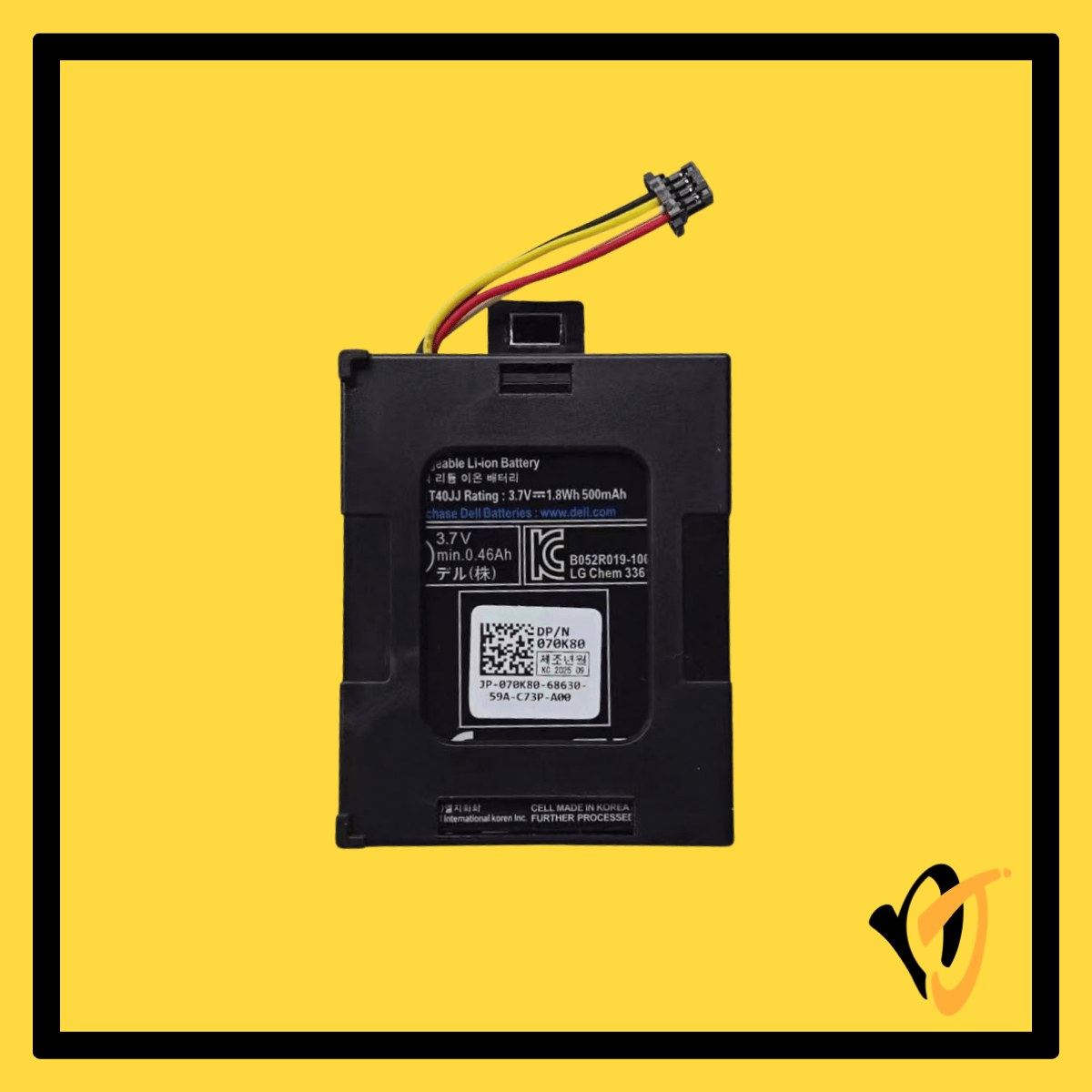

- Battery comes in its black holder with attached cable and connector, as shown in the picture. The RAID controller card is not included.
- After installation the battery needs time to charge before the controller enables write-back cache. Please allow for this when testing.
- Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x Dell 70K80 RAID controller battery (with attached cable)
Warranty
- 3 Months
Additional Notes
Product Description
The Dell 70K80 is the cache backup battery used on PERC H710, H710P and H810 RAID controllers, found in many PowerEdge 12th-generation servers such as the R620 and R720. When the battery fails, the controller usually reports a battery fault and switches to write-through mode, which slows disk performance. Replacing it lets the controller return to write-back caching with protection for cached data during a power cut. NJ Bravo supplies this battery to IT dealers and corporate clients in Malaysia. Chat with us to confirm the part number before ordering.
