Description

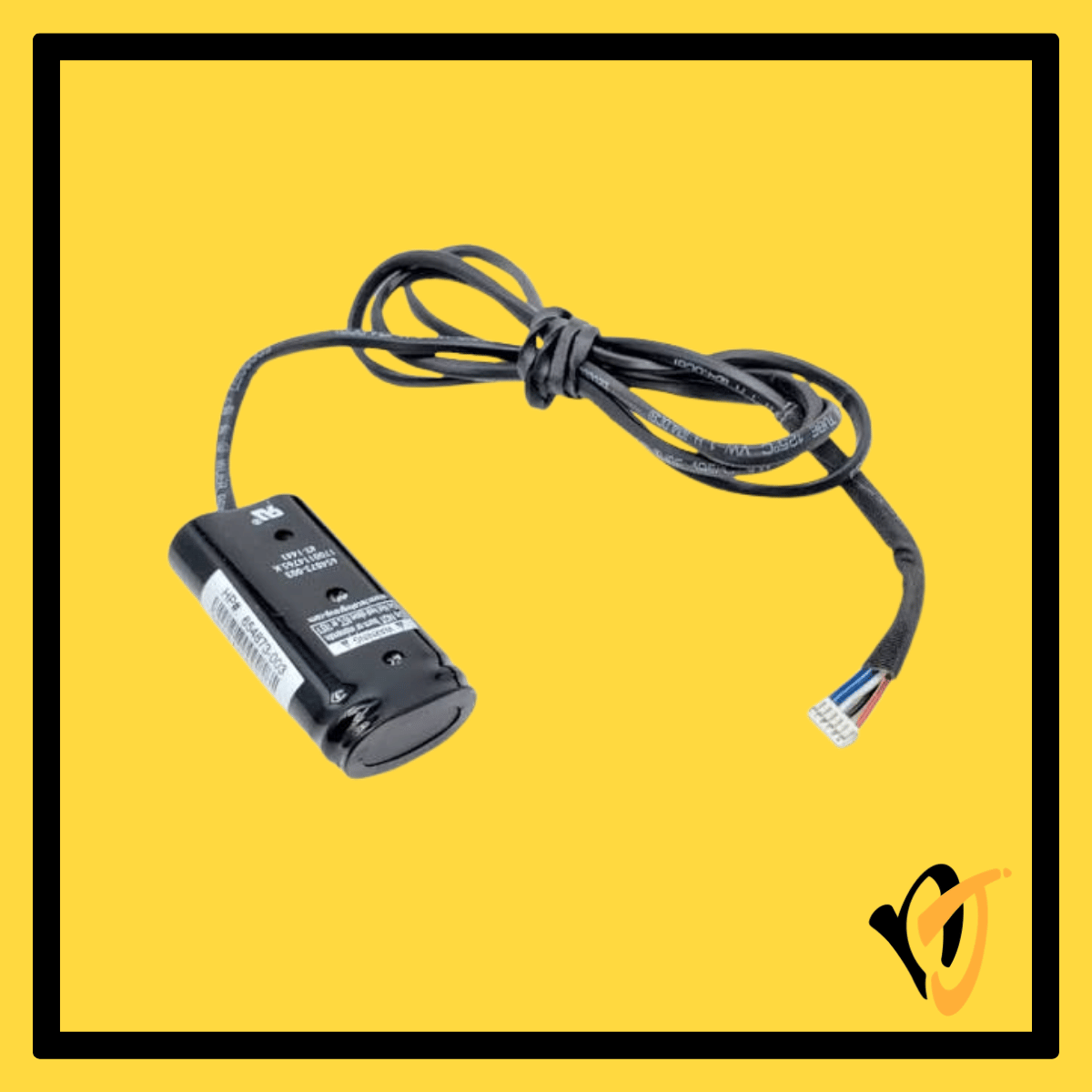

HPE 654873-003 / 660093-001 FBWC Capacitor Pack 5.4V with 36-inch Cable | Smart Array Gen8
Key Features
- Flash-Backed Write Cache (FBWC) capacitor pack for HP Smart Array controllers in ProLiant Gen8 servers
- Part number 654873-003, spare part number 660093-001
- 5.4V capacitor pack with 36-inch (approx. 90cm) cable
- On power loss, the capacitor keeps the FBWC module powered long enough to save cached data to flash, protecting write-cache contents
- Replaces a failed or missing capacitor that causes cache errors or disables write cache on the controller
Technical Specifications
| Brand | HPE |
| Product Type | Flash-Backed Write Cache (FBWC) capacitor pack |
| Part Number | 654873-003 |
| Spare Part Number | 660093-001 |
| Voltage | 5.4V |
| Cable | 36-inch (approx. 90cm) cable with 6-pin connector |
| Platform | HP ProLiant Gen8 Smart Array FBWC |
| Condition | New |
| Warranty | 3 Months |
Compatible Models
- Smart Array controllers (with FBWC module): P222, P420, P420i, P421, P822
- ProLiant Gen8 servers: DL160 Gen8, DL320e Gen8, DL360e Gen8, DL360p Gen8, DL380e Gen8, DL380p Gen8, DL385p Gen8, ML350e Gen8
- Other Gen8 Smart Array controllers (such as P430, P431, B320i): listed by some suppliers, please confirm with us before ordering
Disclaimer
- This is the 36-inch cable version for Gen8 Smart Array FBWC modules. HPE also makes capacitor packs with shorter cables and the Gen9 / Gen10 Smart Storage Battery, which are different parts. Please check the part number (654873-003 or 660093-001) and cable length on your existing unit before ordering.
- Capacitor pack only. The Smart Array controller, FBWC cache module and mounting bracket are not included.
- After installation the capacitor needs time to charge before the controller enables write cache. Please allow for this when testing.
- Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x HPE FBWC capacitor pack with 36-inch cable
- Controller, cache module and bracket are not included
Warranty
- 3 Months
Additional Notes
Product Description
The HPE 654873-003 (spare 660093-001) is the 5.4V capacitor pack used with the Flash-Backed Write Cache module on Smart Array P222, P420, P420i, P421 and P822 controllers in ProLiant Gen8 servers such as the DL360p and DL380p Gen8. If the capacitor fails, the controller reports a cache or capacitor error and turns off write caching, which slows disk performance. Fitting a replacement restores cache protection once the pack has charged. The 36-inch cable lets the pack be mounted away from the controller in the chassis. Please compare the part number on your existing pack before ordering.
