Description

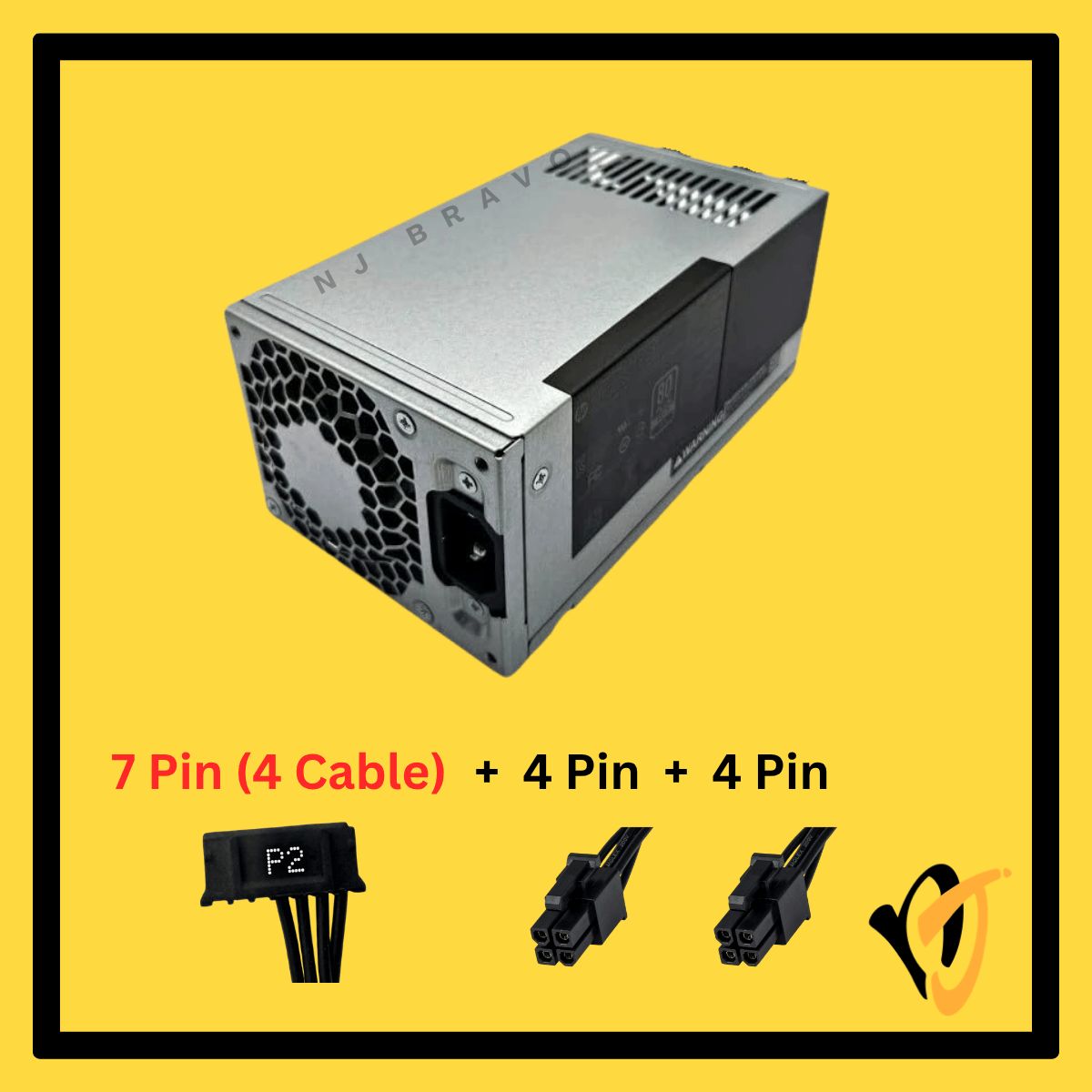

HP 180W Power Supply N97953-002 / D23-180P1A | HP ProDesk 400 G9 / ProDesk 4 G1i (4-Pin + 4-Pin + 7P 4Cable)
Key Features
- New original Genuine HP 180W internal power supply for compact desktop systems
- HP part number: N97953-002 (cross-labeled D23-180P1A; same family as N97953-001 / N97953-003)
- Black label sticker variant — verify against physical unit before shipping
- Compact dimensions: 165 × 95 × 73 mm — HP proprietary slim desktop internal form factor
- Connector layout: 2× 4-Pin (P1, P3) + 1× 7Pin (P2, With 4Cable)
- 180W max output, single +12.1V rail, rated up to 14.88A
- 80 PLUS Gold certified (115V) — high efficiency, lower heat output
- Built-in overcurrent/overvoltage protection (OCP/OVP)
Technical Specifications
| Brand | HP |
|---|---|
| Condition | New (Genuine HP, sealed/unused) |
| HP Part Number | N97953-002 (Black Label) |
| Cross Reference | D23-180P1A (family: N97953-001 / N97953-003) |
| Wattage | 180W MAX |
| Output Voltage | +12.1V DC (single rail) |
| Rated Current | 14.88A |
| Input Voltage | 100–240V AC, 50/60Hz, 2.3A |
| Efficiency | 80 PLUS Gold (115V) |
| Form Factor | HP proprietary slim desktop internal PSU, 165 × 95 × 73 mm |
| Connector Type | 2× 4-Pin (P1, P3) + 1× 7Pin (P2, With 4Cable), black wire harness |
| Fan | Yes, built-in |
| Hot Plug | No (internal fixed-mount PSU) |
| Protection | OCP / OVP |
Compatible Models
- HP ProDesk 400 G9
- HP ProDesk 4 G1i
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× HP 180W Internal Power Supply (N97953-002)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Internal desktop PSU (not a laptop AC adapter) — for HP ProDesk 400 G9 / ProDesk 4 G1i compact chassis only
- Verify the P2 connector (7P with 4 Cable) and black-label sticker match your existing unit — other N97953 family variants may differ in wire harness or connector detail
- Not a universal ATX replacement — connector layout and mounting differ from standard ATX PSUs
- New original unit — genuine factory HP unit, not refurbished or aftermarket
