Description

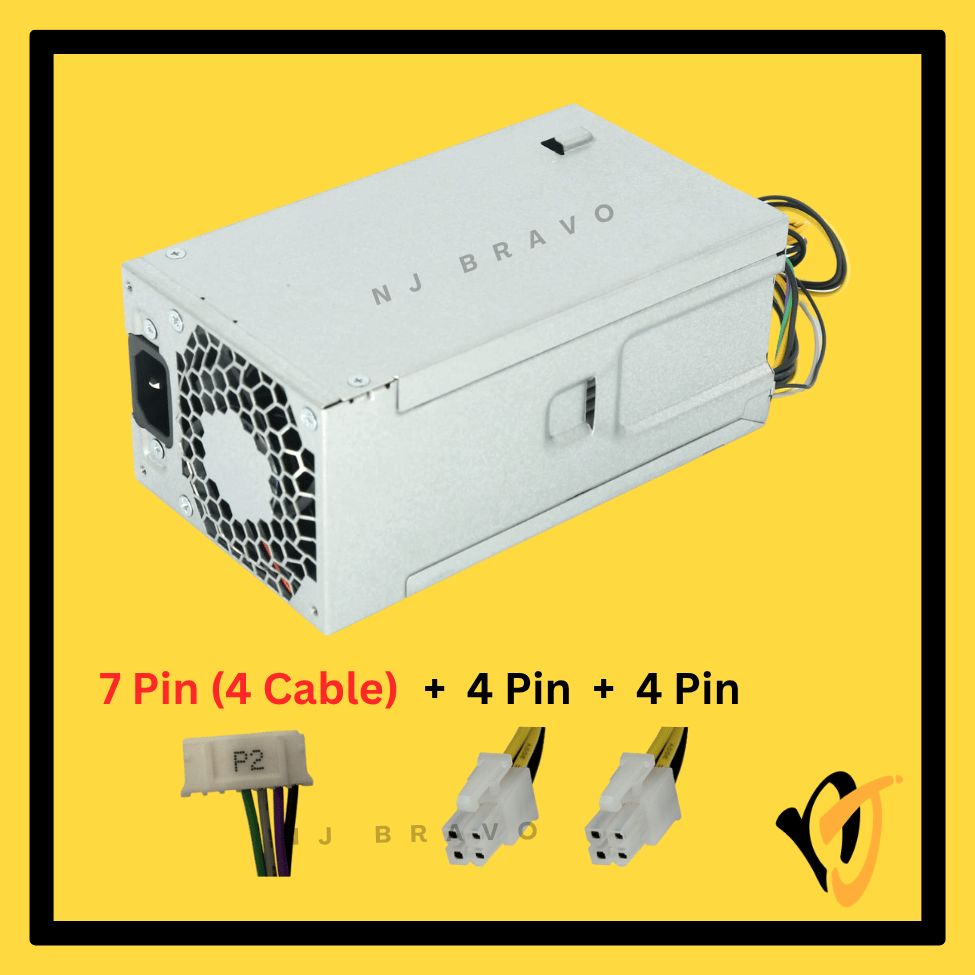

HP 180W Power Supply L70042-011 / L70042-001 | HP ProDesk 400 G7
Key Features
- New original Genuine HP 180W internal power supply for compact desktop systems
- HP part numbers: L70042-011 / L70042-001 — same physical unit, interchangeable
- OEM manufacturer model: D180E026Q-HW01 (also referenced as D19-180P1A)
- Compact dimensions: 95 × 74 × 165 mm — HP proprietary internal form factor
- Connector layout: 2× 4-Pin (P1, P2) + 1× 7Pin (4Cable) (P3)
- 180W max continuous output at +12.1V, rated up to 14.88A
- 80 PLUS Gold certified — high efficiency, lower heat output
- Built-in overcurrent/overvoltage protection (OCP/OVP)
Technical Specifications
| Brand | HP |
|---|---|
| Condition | New (Genuine HP, sealed/unused) |
| HP Part Number | L70042-011 / L70042-001 |
| OEM Model | D180E026Q-HW01 / D19-180P1A |
| Wattage | 180W MAX |
| Output Voltage | +12.1V DC |
| Rated Current | 14.88A |
| Input Voltage | 100–240V AC, 50/60Hz (C13 IEC inlet) |
| Efficiency | 80 PLUS Gold |
| Form Factor | HP proprietary compact internal PSU, 95 × 74 × 165 mm |
| Connector Type | 2× 4-Pin (P1, P2) + 1× 7P 4 Cable (P3) |
| Fan | Yes, built-in |
| Hot Plug | No (internal fixed-mount PSU) |
| Protection | OCP / OVP |
Compatible Models
- HP ProDesk 400 G7
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× HP 180W Internal Power Supply (L70042-011)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Internal desktop PSU (not a laptop AC adapter) — for HP ProDesk 400 G7 compact chassis
- Not a universal ATX replacement — connector layout and mounting differ from standard ATX PSUs
- Verify the exact HP part number / OEM model on your existing unit before ordering
- New original unit — genuine factory HP unit, not refurbished or aftermarket
