Description

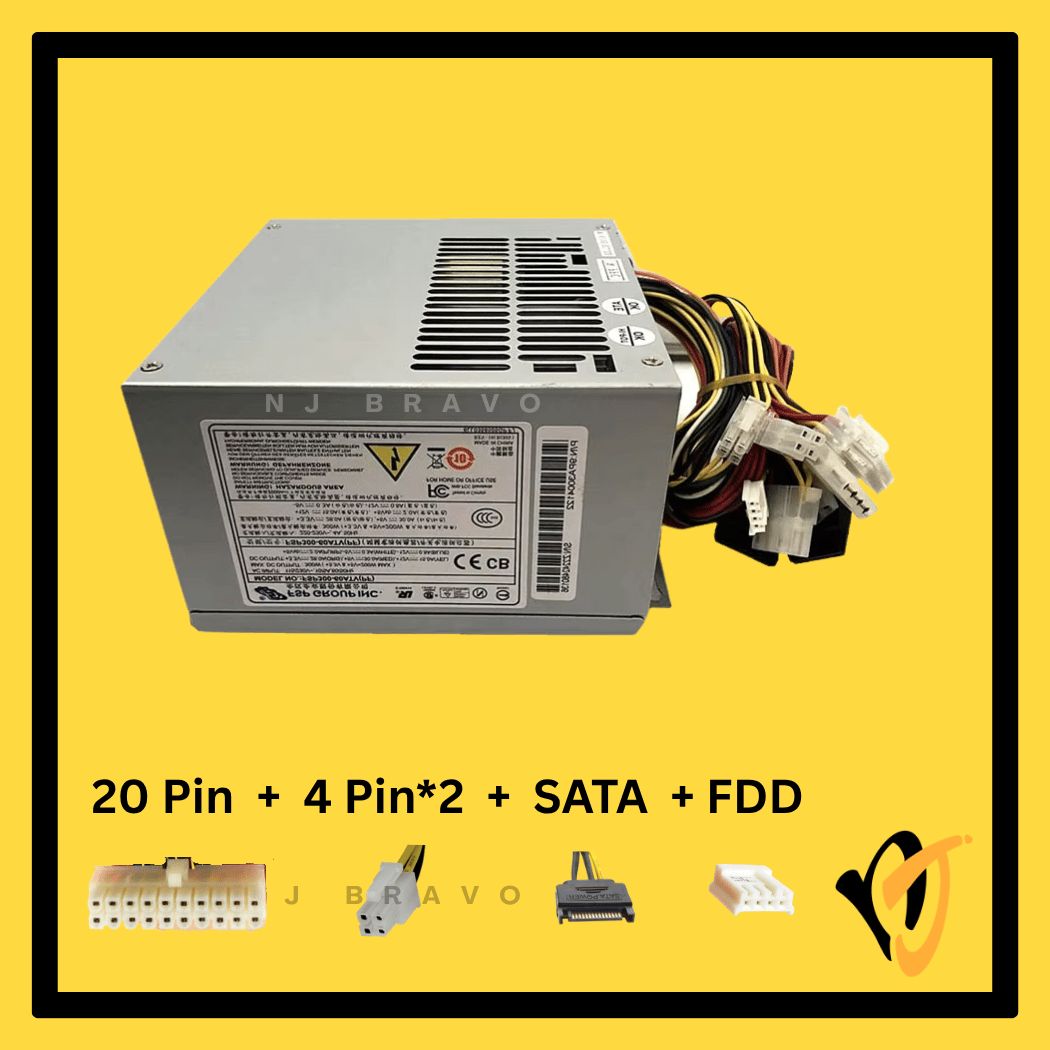

FSP 300W Industrial ATX Power Supply FSP300-60ATV | Advantech IPC-610 / Norco Rackmount / Industrial PC (20+4P × 2 + Molex × 3 + SATA × 3 + FDD × 1)
Key Features
- OEM-compatible new FSP 300W ATX12V 2.0 industrial power supply — suitable for Advantech IPC-610 series, Norco rackmount chassis, EVOC, Yanxiang, and other standard ATX industrial PCs
- FSP model number: FSP300-60ATV — cross-compatible with FSP300-60PLN, FSP300-60PFN, FSP300-60THA within the same ATX12V 2.0 platform family
- Connector layout: 20+4-Pin Main (×2) + Molex 4-Pin (×3) + SATA (×3) + FDD 4-Pin (×1) — full-coverage harness for legacy and modern industrial boards
- Dual 20+4-Pin main connectors — supports both 20-pin and 24-pin ATX motherboard configurations
- Active PFC (Power Factor Correction) — meets EN61000-3-2 requirements for industrial deployments in regulated environments
- Thermal fan speed control (Noise Killer) — internal 80mm 12V DC fan, variable speed under load
- Built-in OVP / OCP / SCP protection — 100% Hi-pot, ATE, and burn-in tested at factory; re-settable power shutdown
- Manual voltage selector — 115V / 230V switchable; suitable for Malaysian 240V mains supply (set to 230V)
- Certifications: UL 60950, TUV, IEC 60950, NEMKO (CB Report), FCC Part 15 Class B, CISPR 22 Class B
Technical Specifications
| Brand | FSP (Fortron Source Power) / Sparkle Power |
|---|---|
| Condition | OEM Compatible — New |
| PSU Model | FSP300-60ATV |
| Also Known As | FSP300-60PLN / FSP300-60PFN / FSP300-60THA |
| Wattage | 300W MAX |
| Input Voltage | 115Vrms / 230Vrms — Manual selector; 47–63 Hz |
| Input Current | 7A (RMS) @ 115V / 4A (RMS) @ 230V |
| Output | +3.3V @ 28A | +5V @ 30A | +12V @ 15A | -12V @ 0.8A | -5V @ 0.3A | +5VSB @ 2A | 300W MAX |
| Form Factor | ATX12V 2.0 — Standard ATX (approx. 150 × 140 × 86 mm) |
| Connector Type | 20+4-Pin Main (×2) + Molex 4-Pin (×3) + SATA (×3) + FDD 4-Pin (×1) |
| Fan | 80mm 12V DC — Thermal speed control (Noise Killer) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP — Re-settable power shutdown |
| Certifications | UL 60950 / TUV / IEC 60950 / NEMKO (CB) / FCC Class B / CISPR 22 Class B |
| PFC | Active PFC — EN61000-3-2 compliant |
Compatible Models
Advantech IPC Series:
- Advantech IPC-610H
- Advantech IPC-610L
- Advantech IPC-610G
Norco Rackmount Chassis:
- Norco RPC-230
- Norco RPC-250
- Norco RPC-270
- Norco RPC-430
- Norco RPC-450
- Norco RPC-470
EVOC / Yanxiang Industrial PC:
- EVOC IPC-810 / IPC-820
- Yanxiang Industrial PC (Standard ATX12V 2.0 chassis)
General Industrial Applications:
- Video surveillance systems and NVR/DVR enclosures
- Industrial automation and machine vision PCs
- Power grid and medical equipment control systems
- Environmental monitoring and SCADA workstations
- Any standard ATX12V 2.0 industrial / rackmount chassis
!
Disclaimer
Always verify the PSU model number on your existing unit label before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1× FSP 300W Industrial ATX PSU FSP300-60ATV (OEM Compatible — New)
Warranty
- 3-month replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Manual voltage selector switch must be set to 230V for Malaysian 240V mains supply before powering on — incorrect setting will damage the PSU and connected hardware.
- Dual 20+4-Pin main connectors allow this PSU to serve both legacy 20-pin ATX boards and modern 24-pin ATX boards from a single unit.
- Cross-compatible with FSP300-60PLN, FSP300-60PFN, and FSP300-60THA — verify your existing PSU model label before ordering; the connector harness layout must match your chassis.
- Standard ATX12V 2.0 form factor — fits any chassis with a standard ATX PSU bay; non-proprietary design.
- OEM compatible unit — new, unregistered stock; not refurbished or previously installed.
