Description

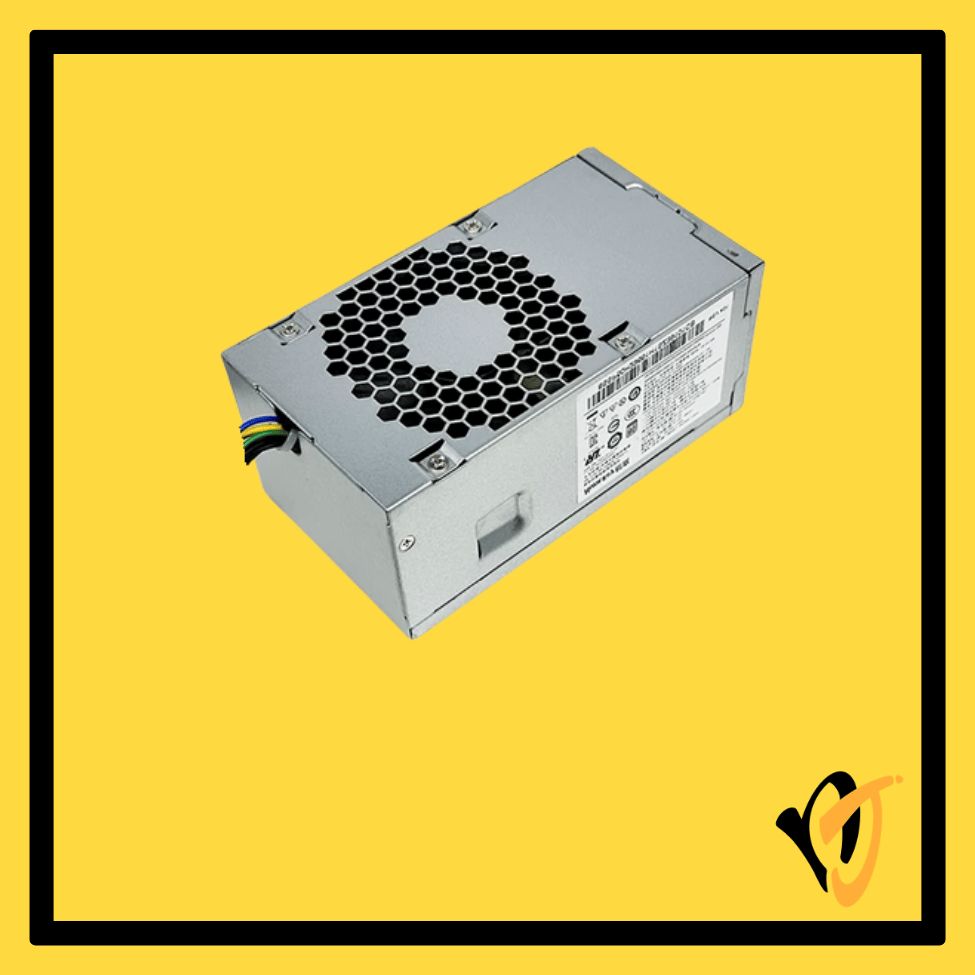

Lenovo 180W Power Supply HK280-73PP | ThinkCentre M410 / M510 / M610 / M710 / M910 SFF TFX (10 + 4 Pin)
Key Features
- New original Lenovo 180W TFX power supply for ThinkCentre M-series SFF desktop
- Model: HK280-73PP – Lenovo OEM TFX SFF power supply
- Compatible FRU / PN: 00PC744 / 00PC745 / PA-2181-3 / FSP180-20TLA / PCK014 / PCG010 / FSP180-20TGBAB / PA-2181-2
- Lenovo proprietary 10-Pin main + 4-Pin CPU connector (10+4P) – ThinkCentre SFF proprietary
- Compact TFX form factor (150 x 65 x 82 mm) – fits Lenovo SFF TFX chassis
- Stable 180W output for ThinkCentre SFF business desktop workloads
- Built-in OVP / OCP / SCP protection
- 10-Pin proprietary connector – NOT compatible with standard ATX PSUs
Technical Specifications
| Brand | Lenovo OEM (Huntkey) |
| Condition | New Original |
| Model Number | HK280-73PP |
| FRU / PN | 00PC744 / 00PC745 / PA-2181-3 / FSP180-20TLA / PCK014 / FSP180-20TGBAB / PA-2181-2 |
| Wattage | 180W MAX |
| Input Voltage | 100-240V AC, 50-60Hz, 3A |
| Output | 180W MAX continuous output |
| Form Factor | Lenovo TFX SFF (150 x 65 x 82 mm) |
| Connector Type | 10-Pin + 4-Pin CPU (10+4P) |
| Hot Plug | No |
| Protection | OVP / OCP / SCP |
Compatible Models
Lenovo ThinkCentre SFF TFX Series:
- Lenovo ThinkCentre M410 / M415 SFF
- Lenovo ThinkCentre M510 / M510S SFF
- Lenovo ThinkCentre M610 / M710 / M910 SFF
- Lenovo S500 / S510 / B415 / V525 / V530
!
Disclaimer
Always verify the part number / model number on your existing PSU label before purchasing.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1x Lenovo 180W Power Supply HK280-73PP (New Original)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- Lenovo proprietary 10+4P connector – NOT compatible with standard ATX or other brand SFF PSUs.
- TFX form factor (150 x 65 x 82 mm) – verify PSU bay dimensions before ordering.
- Verify FRU/PN on existing PSU matches HK280-73PP or 00PC744/00PC745 before ordering.
- New original unit – not refurbished or aftermarket.
