Description

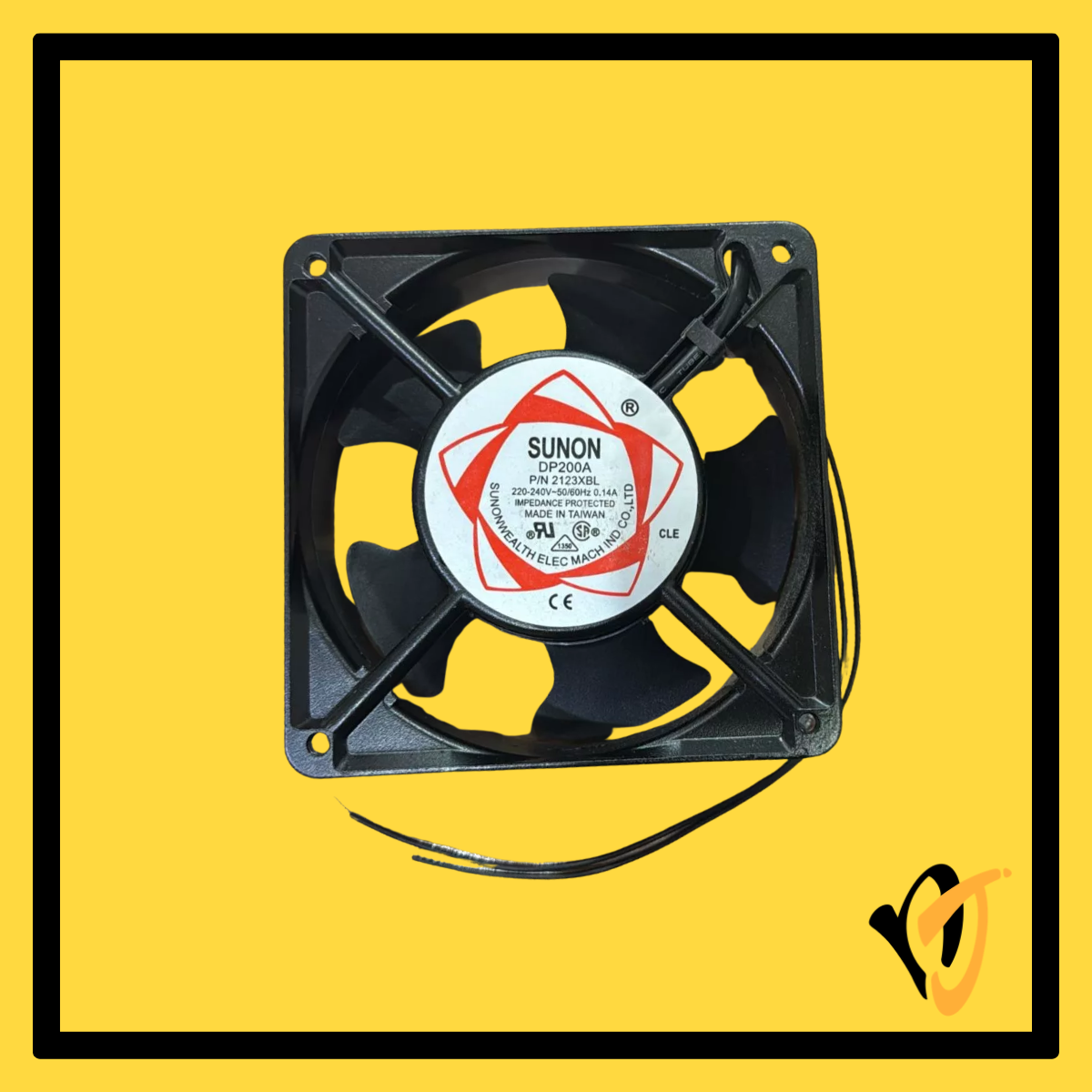

SUNON DP200A AC Cooling Fan
SUNON DP200A AC axial cooling fan for industrial equipment, control cabinets, power supplies and other applications requiring reliable 220–240V forced-air cooling. Model/P/N: DP200A 2123XBL.
Key Features
- 120 x 120 x 38mm industrial AC axial fan.
- 220–240V AC operation with two-lead wire connection.
- High airflow for equipment and enclosure cooling.
- Ball-bearing construction for dependable continuous operation.
- Made in Taiwan.
Technical Specifications
| Brand | SUNON |
| Model / P/N | DP200A / 2123XBL |
| Fan type | AC axial cooling fan |
| Dimensions | 120 x 120 x 38mm |
| Rated voltage | 220–240V AC; operating range 185–245V |
| Current | 0.14A nominal |
| Frequency | 50/60Hz |
| Power consumption | Approximately 29/31W as supplied; published model data may vary by suffix |
| Speed | 2700–3100 RPM as supplied |
| Air volume | 2.68/3.25m³/min as supplied |
| Bearing | Ball bearing |
| Wire connection | Two leads, approximately 25cm |
| Mounting hole spacing | 105mm centre-to-centre horizontally; 148mm diagonally |
| Rotation | Counter-clockwise when viewed from the fan-blade side |
| Ambient temperature | −20°C to 50°C |
| Country of origin | Taiwan |
Important: This is a mains-voltage AC fan. Installation should be carried out by a suitably qualified person. Confirm voltage, wiring, airflow direction, mounting clearance and electrical protection before use.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector and compatibility.
Package Contents
- 1 x SUNON DP200A AC fan
Warranty
- 3 months warranty.
Additional Notes
- Back-order purchase is allowed; customers will be notified if stock is unavailable.
- Performance figures can vary according to the exact suffix, supply conditions and installation environment.
