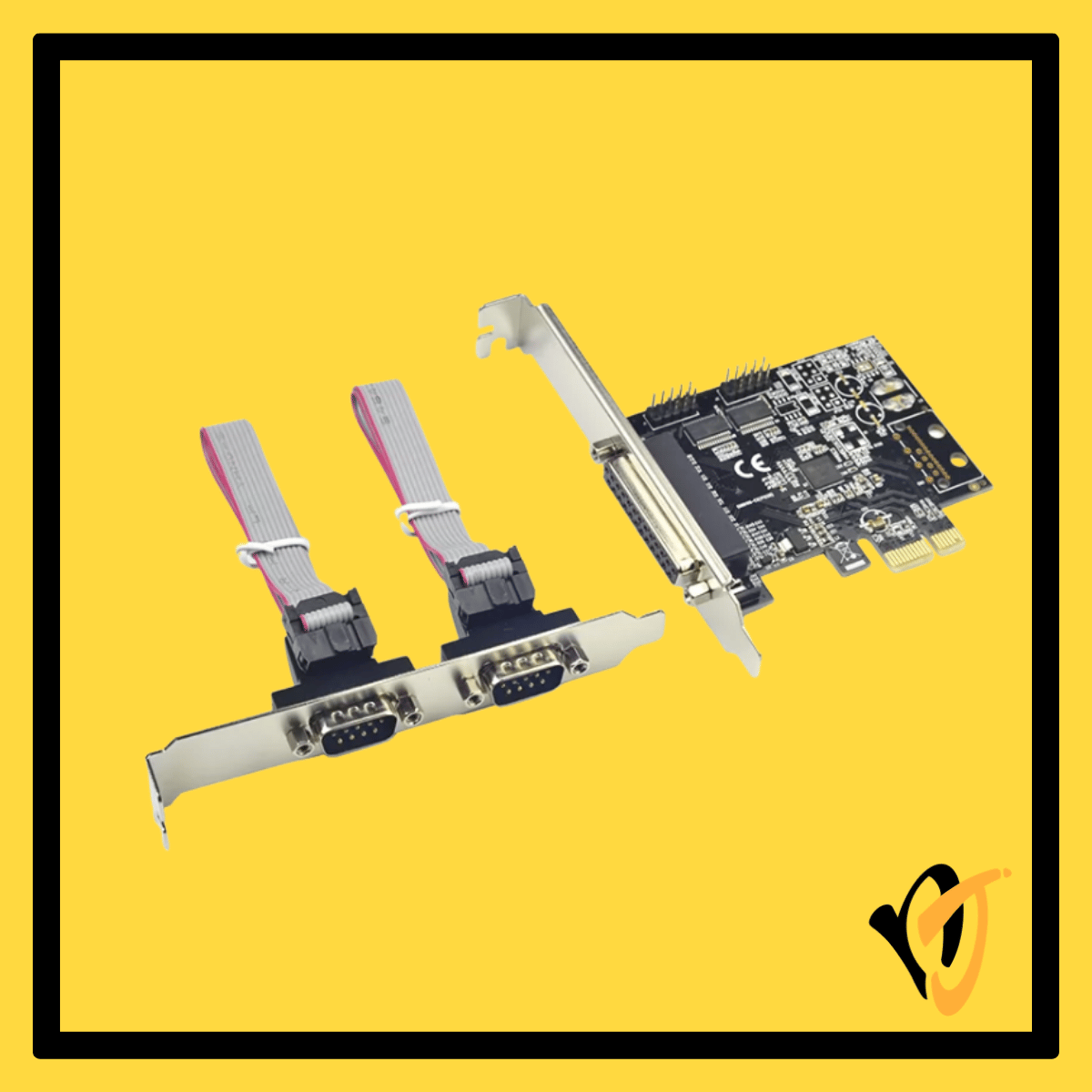

SYBA E1-PCE99100-2S1P PCIe 2 Serial RS232 DB9 + 1 Parallel DB25 (LPT) IO Card – ASIX AX99100
Key Features
- Adds 2 DB9 RS-232 serial ports and 1 DB25 parallel (LPT) port to a desktop PC or workstation through a PCIe x1 slot
- ASIX AX99100 chipset with 16C450/16C550 compatible UART and 256-byte FIFO on the serial side, 50bps to 250Kbps
- Parallel port follows IEEE 1284 with SPP, EPP and ECP support
- PCIe x1 card that also fits x4, x8 and x16 PCIe slots
- Available with a normal (standard 12cm) or low profile (8cm) bracket, selectable by variation
- Driver download provided for Windows and other supported systems
Technical Specifications
| Product Type | PCI Express to 2 Serial (DB9 RS-232) + 1 Parallel (DB25) IO card |
| Model | SYBA E1-PCE99100-2S1P |
| Chipset | ASIX AX99100 |
| Host Interface | PCI Express x1 (also usable in x4 / x8 / x16 PCIe slots) |
| Serial Ports | 2 x DB9 RS-232, 16C450/16C550 compatible UART, 256-byte FIFO, 50bps to 250Kbps |
| Parallel Port | 1 x DB25 parallel (LPT), IEEE 1284, SPP / EPP / ECP |

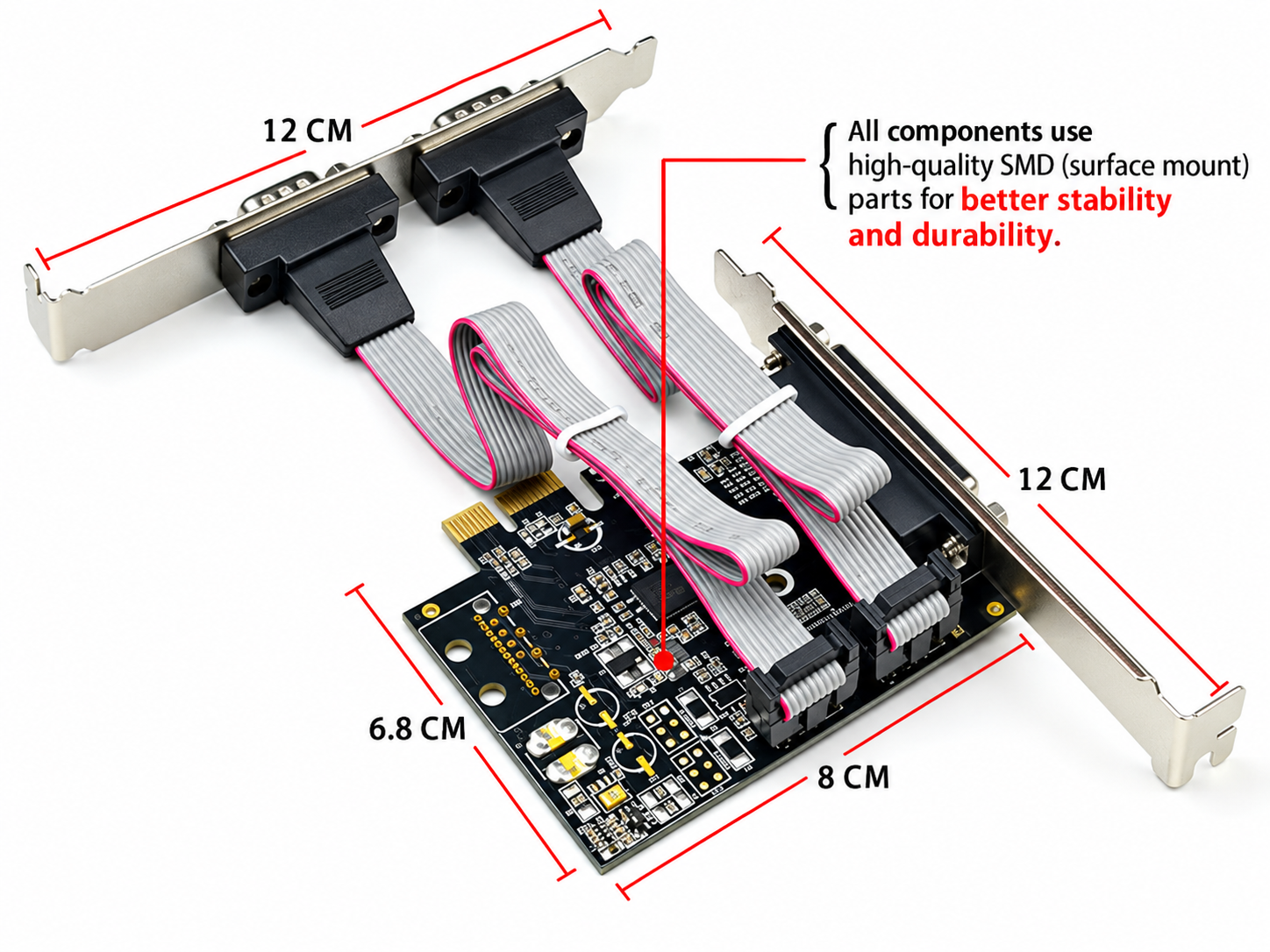

| Bracket | Choose by variation: Normal (standard 12cm bracket) or Low Profile (8cm bracket) |
| Operating Systems | Windows 10 / 8.1 / 8 / 7 / Vista / XP, Windows Server 2003-2008 (32/64-bit), Linux (per manufacturer) |
| Brand | Syba |
| Condition | New |
| Warranty | 3 Months |
Suitable For
- Desktop PCs and workstations with a free PCI Express slot
- Slim cases that need a low profile bracket (select the Low Profile variation)
- POS, serial printers, card readers, industrial control and other RS-232 serial equipment
- Parallel (LPT) printers and legacy parallel devices on systems without onboard ports
!
Disclaimer
- Two bracket options are offered (Normal and Low Profile). Please select the bracket type you need when ordering.
- The two DB9 serial ports are on a separate connector bracket, connected to the card by ribbon cables. Please make sure your case has room for it before ordering.
- This card is for a PCI Express slot. It is not for conventional PCI slots. A driver is needed on most Windows versions: please install it from the link below the specification table.
- Serial equipment may need specific pin power or signal settings. Please check your device requirements before connecting, and test with your own equipment.
- Operating system support follows the manufacturer information. Please confirm your operating system with us before ordering, especially for newer Windows versions.
- Stock is limited and many orders are on a back-order basis. Back-order quantities cannot be cancelled after payment.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Package Contents
- 1 x SYBA E1-PCE99100-2S1P PCIe card, with the bracket type selected (Normal or Low Profile)
- 1 x Connector bracket with 2 x DB9 serial ports, connected to the card by ribbon cables
- Driver disc and manual are not part of the standard package unless confirmed by NJ Bravo before ordering
Driver Download
- Download drivers here
- ASIX AX99100 driver package, provided by the card manufacturer (Syba).
- Until the driver is installed, Windows Device Manager lists the card as PCI Serial Port and PCI Parallel Port entries with a yellow warning mark under Other devices. This is normal. Install the driver to enable the ports.
Warranty
- 3 Months
Additional Notes
Product Description
The SYBA E1-PCE99100-2S1P is a PCI Express x1 combo card that gives a desktop PC or workstation two DB9 RS-232 serial ports and one DB25 parallel (LPT) port in a single card. It uses the ASIX AX99100 controller, with 16C450/16C550 compatible UARTs and 256-byte FIFOs for the serial ports, and an IEEE 1284 parallel port supporting SPP, EPP and ECP. It suits POS, industrial control, serial and parallel printers and other legacy equipment on modern machines without onboard COM or LPT ports. Choose the normal or low profile bracket version to match your case. A driver download is provided for installation.
