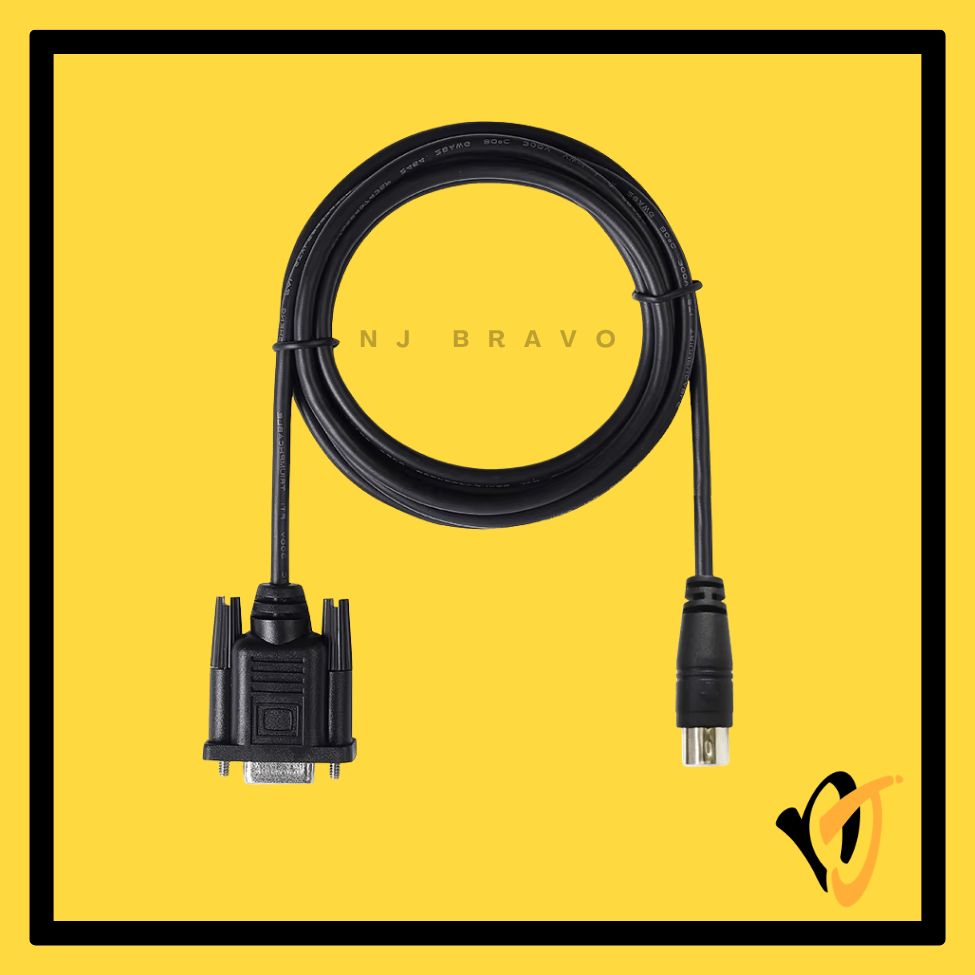

WEINTEK / WEINVIEW MT-FP | DB9F to Round 5-Pin HMI-to-PLC Communication Cable — 3M
The Weintek/Weinview MT-FP is a communication cable for connecting Weintek/Weinview MT Series HMI Touch Panels to Panasonic FP0 and FP-X Series PLCs. It uses a DB9 on the HMI side and a Round 5-Pin connector matching the Panasonic FP0/FP-X RS-232 port.
Key Features
- DB9F on HMI side — connects to Weintek MT HMI COM port
- Round 5-Pin (Male) on PLC side — Panasonic FP0/FP-X proprietary RS-232 port
- RS-232 serial communication
- 3-metre cable
Technical Specifications
| Cable Model | MT-FP |
| Cable Length | 3 Metres (3M) |
| Interface — HMI Side | DB9F |
| Interface — PLC Side | Round 5-Pin (Male) MD5 — Panasonic FP0/FP-X proprietary |
| Protocol | RS-232 Serial |
| Condition | OEM Compatible — New (no retail box) |
Compatible Models
- Weintek/Weinview MT Series HMI (DB9 COM port): MT6000, MT8000 series
- Panasonic FP0, FP-X (FPΣX), FP-Σ Series PLCs with round 5-pin RS-232 port
!
Disclaimer
Always verify the exact port type and model number on your device before ordering.
If you are unsure which model is suitable, chat with the NJ Bravo team before ordering. We will help you check the part number, connector, and compatibility.
Typical Use Cases
- HMI ↔ Panasonic FP0/FP-X PLC real-time communication
- EasyBuilder Pro HMI configured with Panasonic FP/KW RS-232 driver
Package Contents
- 1× Weintek MT-FP HMI-to-PLC Communication Cable, DB9F to Round 5-Pin, 3M (OEM Compatible — New)
Warranty
- 90-day replacement warranty
- Covers manufacturing defects; physical damage and improper installation not included
Additional Notes
- OEM compatible — not a Weintek-branded unit.
- Configure EasyBuilder Pro with Panasonic FP/KW Series communication driver.
- Baud rate and parity settings must match Panasonic PLC configuration (default 9,600 bps, 8N1).
